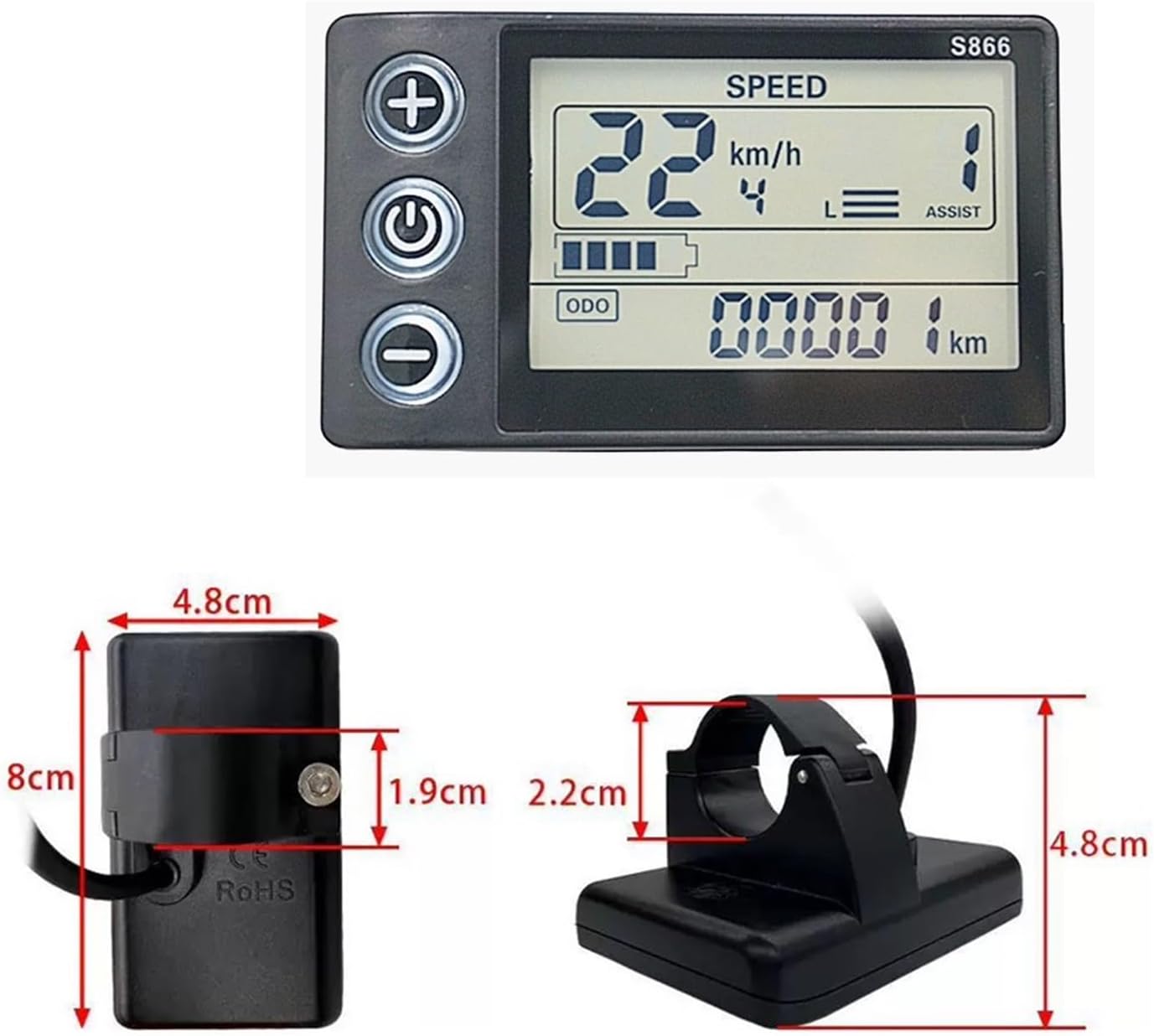

Motorcycle Odometer Speedometer Motorcycle Display Instrument 24V 36V 48V Meter Control Panel SM 7-pin for No. 2 Protocol Controller 22.2mm Handlebar S866

Welcome to my motorcycle accessories mall,We will do our best to serve you and create a perfect shopping experience for you.Speed display, power indication, fault prompt, total mileage, single mileage2. Control and setting functionPower switch control, wheel diameter setting, idle automatic sleep time setting, backlight brightness setting, startup mode setting, drive mode setting, voltage level setting, controller current limit value setting, 3. Communication protocol: UART All contents of the display screen (full display within 1S after power on)Display content introduction3.1 power and BMS remaining power display3.2 Multi-function display areaTotal mileage 0D0, single mileage TRIP (unit: mile, km), single power-on time TIME, voltage VOL, DST: endurance mileage3.3 Speed display area3.4 Vehicle power gear adjustment, 0-9 gear digital display and gear bar display;3.5 Vehicle status display areaMotor fault;: Fault;: Brake prompt;: Headlight on prompt:3.6 Vehicle status code table:Fault code (decimal) Fault status Remarks0 Normal state1 Reserved2 Brake3 Power sensor fault (riding sign) Not implemented here4 6KM/H cruiseP01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;P02: Mileage unit, 0: KM; 1: MILE; P02:P03: Voltage level: 24V, 36V, 48V;P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit: minutesP05: Power gear: 0, 3 gear mode:1, 5 gear mode:P06: Wheel diameter: unit, inch; accuracy: 0.1;This parameter is related to the speed displayed by the instrument and needs to be entered correctly;P07: Number of speed magnets: range: 1-100:For example: the number of motor magnets is 20, the reduction ratio is 4.3: the input data is: 86=20x4.3P08: speed limit: range 0-100km/h, 100 means no speed limitMaterial: Plastic + + MetalDisplay size: Approx. 8 x 5 cm/3.15 x 1.97 Weight: Approx. 148gramsPacking list:1 x displayRed (VCC) instrument power lineBlue (K) controller power control lineBlack (GND) instrument ground lineGreen (RX) instrument data receiving lineYellow (TX) instrument data sending lineIf you have any questions, please contact us in time and we will do our best to help you solve your problems.

• Motorcycle Digital Made of plastic You can read the data more easily and clearly whether it is day or night.
• application: Motorcycle Accessory enhancing your riding safety and enjoyment.
• design: Digital trip meter odometer-made, reasonable design, stable and practical, bring you a use experience,
