Mini CNC Lathe DIY Metal CNC Lathe Machine with Cabinet Mini Lathe with 3-jaw Chuck Base for Hobby and School Education (AFTER 990TDB)
Product details
| Management number | 210001012 | Release Date | 2026/04/02 | List Price | $4,391.60 | Model Number | 210001012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

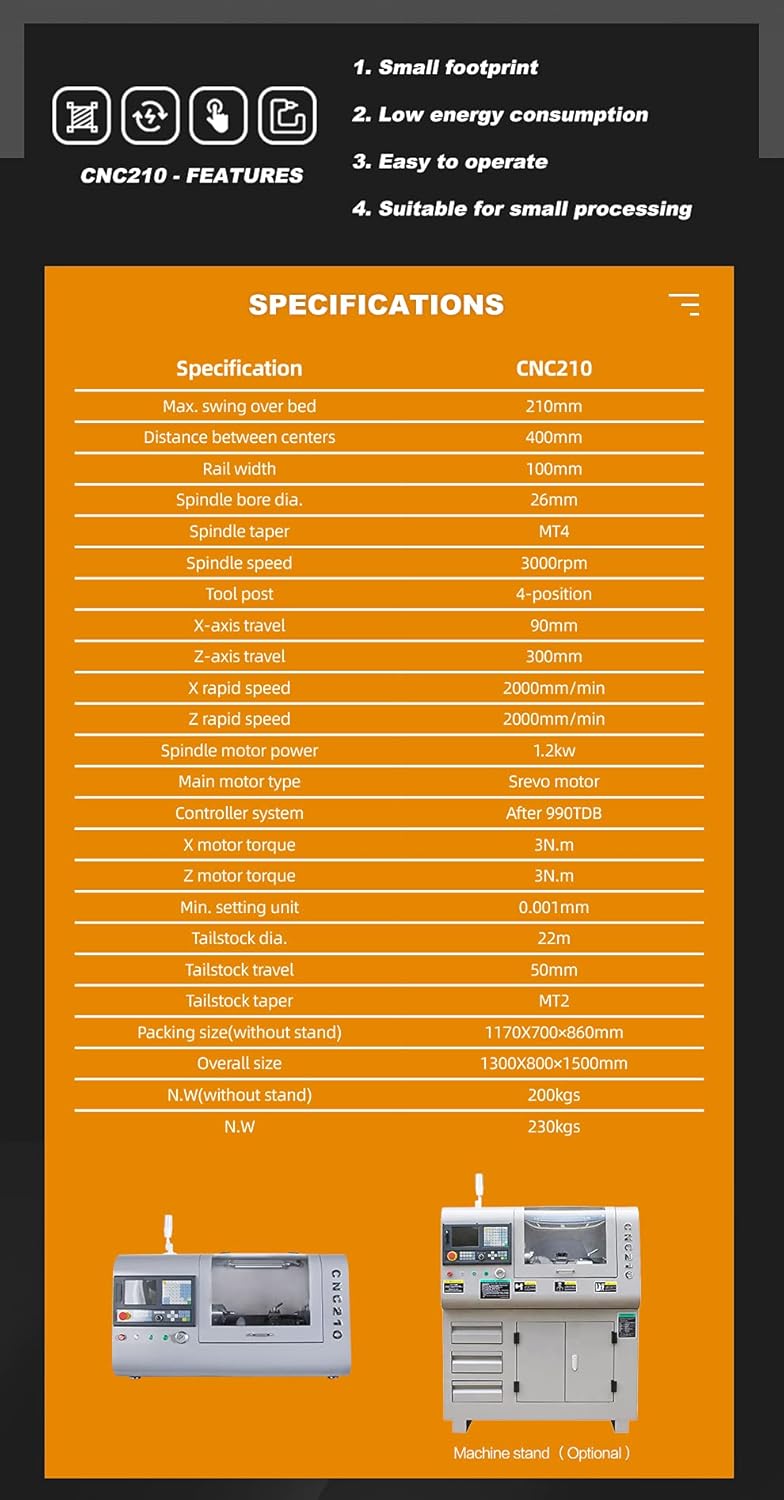

CNC210 CNC Lathe Features:The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.DC brushless spindle motor.Small occuping,lower energy consumption,easy operation,suitable for small processing.High-quality spindle by high-precision grinding and support by Angular contact bearing.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.Technical Parameters:Max.swing over bed: 210mmMax.swing over carriage: 100mmDistance between centers: 400mmSindle bore dia.: 26mmSindle taper: MT4Spindle speed: 3000rpmX travel: 90mmZ travel: 300mmTool post: 4-positionRapid Speed: 3m/minFeeding motor power: 3.0 N.MFeeding motor type: step motorSpindle motor power: 1.2KWSpindle motor type: incremental Servo motorMin.setting unit: 0.001mmTailstock dia.: 22mmTailstock travel: 50mmTailstock taper: MT2Overall size: 1170*700*1760mmNet weight: 340KG
- The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.
- DC brushless spindle motor.
- High-quality spindle by high-precision grinding and support by Angular contact bearing
- Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine
- Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.
| Size | AFTER 990TDB |
|---|---|
| Speed | 3000.00 |
| Voltage | 240 Volts |
| Wattage | 1200 watts |
| Item Weight | 627 pounds |
| Part Number | CNC210 |
| Manufacturer | Luoyang SFX Industrial Technology Co.,Ltd |
| Power Source | ac |
| Product Dimensions | 46.06 x 27.56 x 33.86 inches |
