Luqeeg OTDR Fiber Tester, 1310nm -50 ~ +26dBm 80km Test Range OTDR Tester Multifunctional Optical Network Tester Optical Time Domain Reflectometer with 4.3 Inch LCD Display

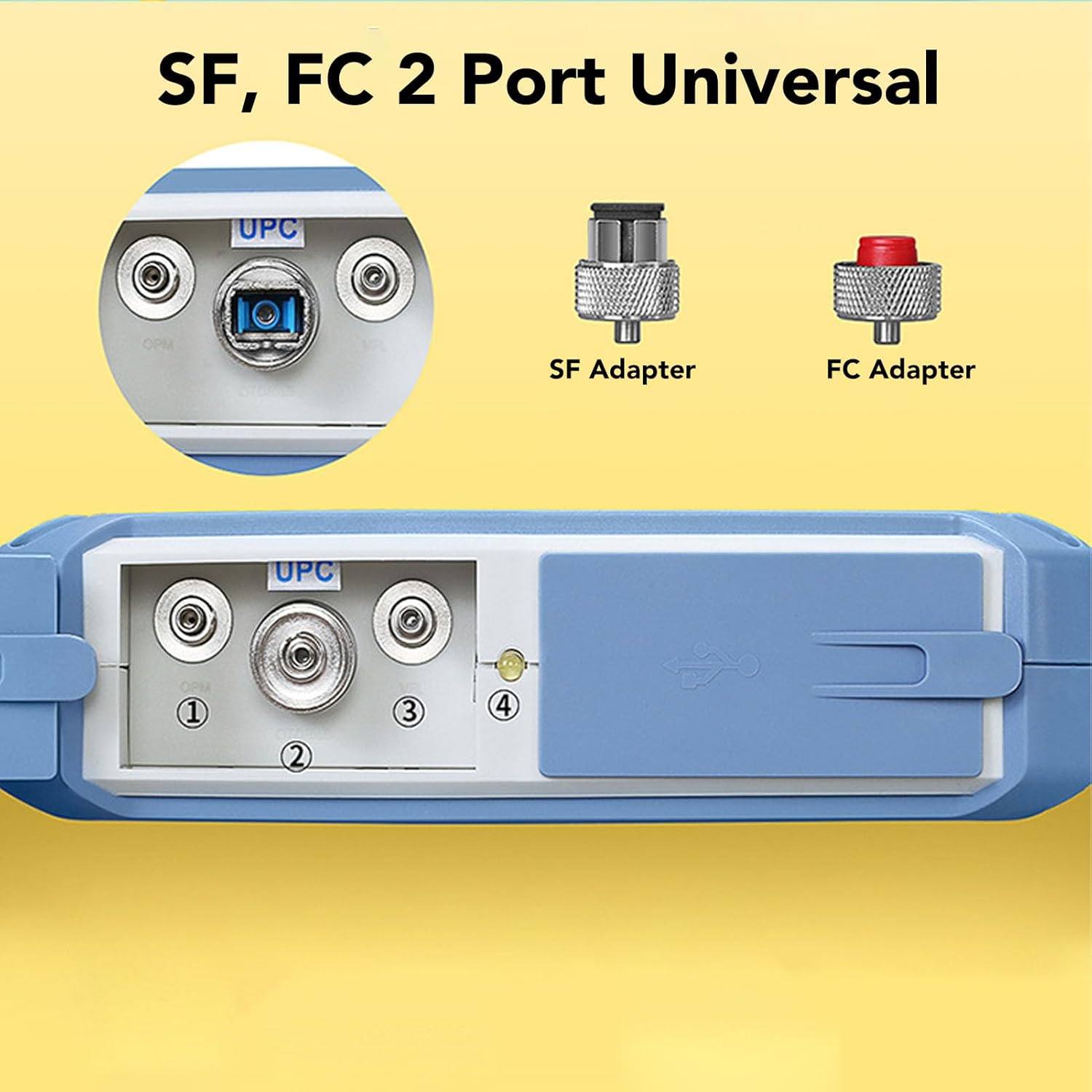

Spec:Item Type: OTDR Optical Time Domain ReflectometerModel: AUA513UCan be tested with lightConnector Model: UPCOptical Power Meter: -50~+26dBmStabilized Light Source: 1310nmTest Range: 80km4 Switchable Languages: Chinese, English, Portuguese, SpanishSave Test Data: >100000 Groups ( Shipped With 32GB Memory Card )Display: 4.3 Inch 800 x 480 Pixel Capacitive LCD Power Supply: Built In 7.4 V 2200mah Lithium Polymer Battery x 2 ( Shipped With Built In Battery )Power Supply For RJ45 Receiver: Requires 9V6F22 Battery x 1 ( Shipped Without Battery )VFL Red Light Source Interface (2.5mm Universal SC, FC, ST)OTDR or Stabilized Light Source Interface ( Can be replaced by SC or UPC or FC or UPC )OPM Optical Power Meter Interface (2.5mm Universal SC, FC, ST)Optical Loss Test: FC or SC Interface, 0-30dB Range.With Line Finding Test Function: Can measure straight through line T568B, cross line T568AHow to Use:Ready to use when you turn the machine on.PackageList:1 x Optical Time Domain Reflectometer1 x Manual1 x USB Cable1 x RJ11 Clip Cable1 x Power Cord1 x FC Adaptor ( Already installed in the machine )1 x SC Adaptor1 x RJ45 Receiver1 x RJ45 Remote Adapter1 x Storage Bag1 x Backpack Strap1 Pack x Cleaning Swab1 x Earphone1 x RJ45 Test Cable1 x FC LC Adaptor

• Nine Functions: This fiber optic tester has nine functions, such as OTDR, event map, optical power meter, red light source, stabilized light source, light loss test, LED illumination, RJ45 wire measurement, RJ45 wire finding.
• Automatic Test And Analysis: This fiber optic tester adopts one click test to analyze the data automatically without more operation, which is very convenient and fast.
• Wide Application: This fiber optic tester has a wide range of applications for evaluating FTTx and access network construction and maintenance, identifying fiber breaks, measuring cable lengths, and calculating relative optical power loss.
• Wide Testing Range: This OTDR can measure a wide range of fiber optic networks, including long distance fiber optic networks and distributed fiber optic sensing networks.
• Excellent ABS Material: The case of this OTDR optical time domain reflectometer is made of excellent ABS material, which is sturdy and wear not easy to be damaged, and has a long service life.
