DIHOOL Heavy Duty Battery Disconnect Switch, 400 Amp DC Circuit Breaker for Boat Trolling Motor Marine,Solar System, UPS
Product details
| Management number | 215606978 | Release Date | 2026/04/12 | List Price | $39.55 | Model Number | 215606978 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Function: Thermal Magnetic Trip, circuit overload protection, isolation circuit, circuit short circuit protection

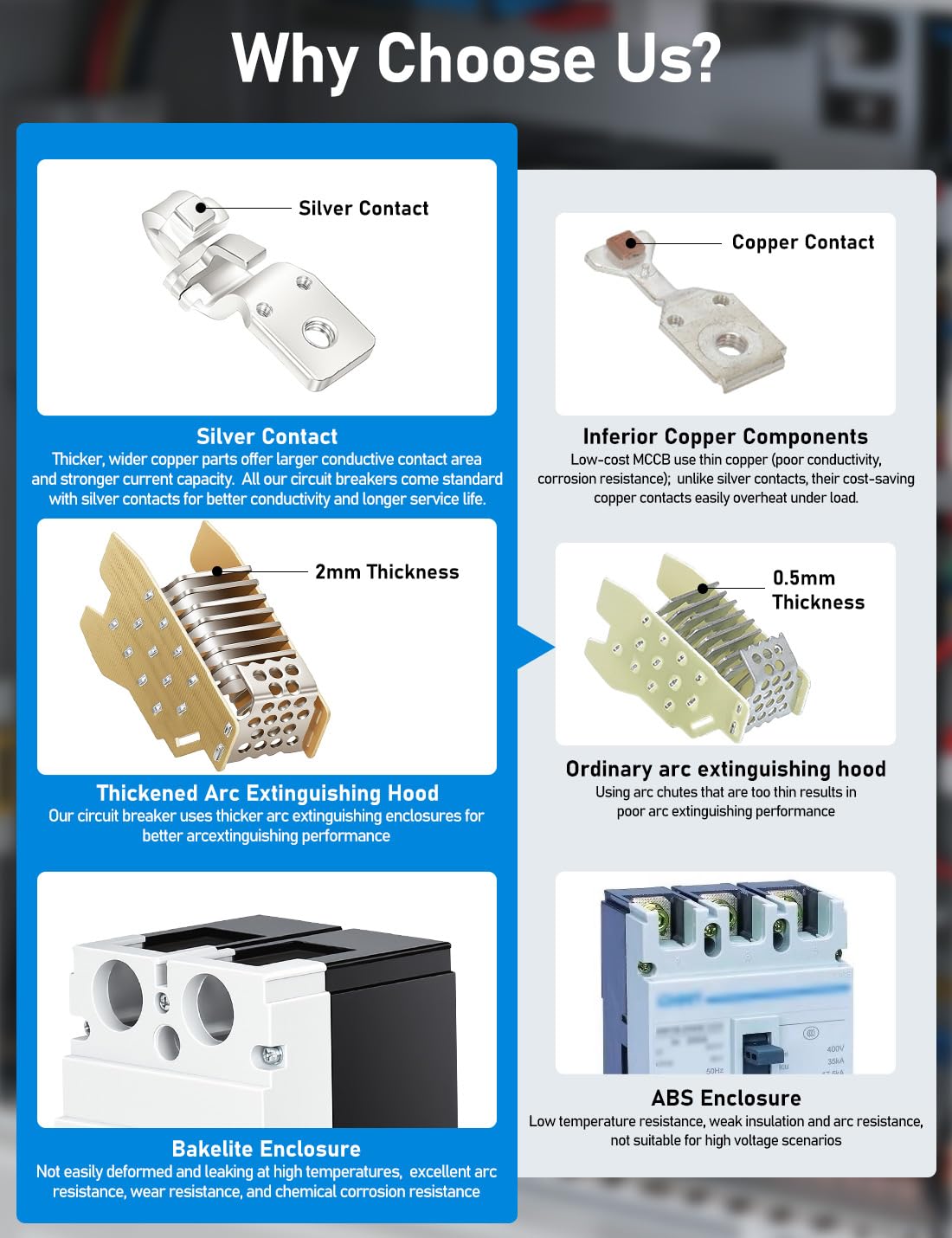

- 30% silver content in moving contacts, 45% silver content in stationary contacts
- Working voltage: DC 12V~500V AC 90~480V short-circuit breaking capacity 25kA

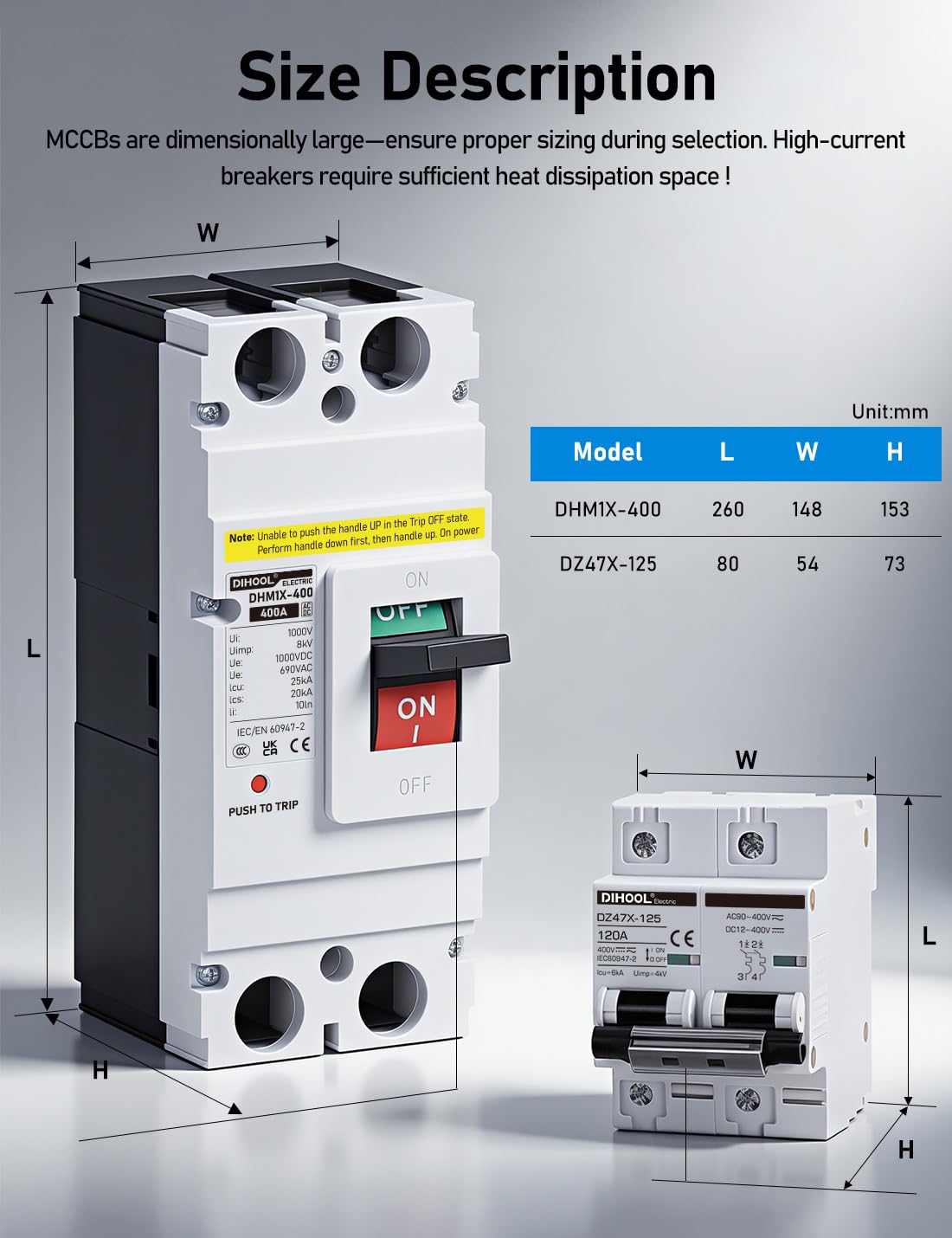

- Size:256MM x 148MM x 153MM, It needs to be installed on the panel through screws
- Suitable for DC application such as photovoltaic / UPS / battery / Datacenter etc.
| Model | DH M1X 2P 400A |
|---|---|
| Voltage | 500 Volts |
| Brand Name | DIHOOL |
| Part Number | USA-DHM1X-2P-400A |
| Manufacturer | DIHOOL ELECTRIC |
| Mounting Type | Surface Mount |
| Current Rating | 400 Amps |
| Number of Poles | 2 |
| Included Components | Arc barrier |
| Circuit Breaker Type | Standard |
| Item Dimensions D x W x H | 3.78"D x 5.83"W x 10.24"H |
