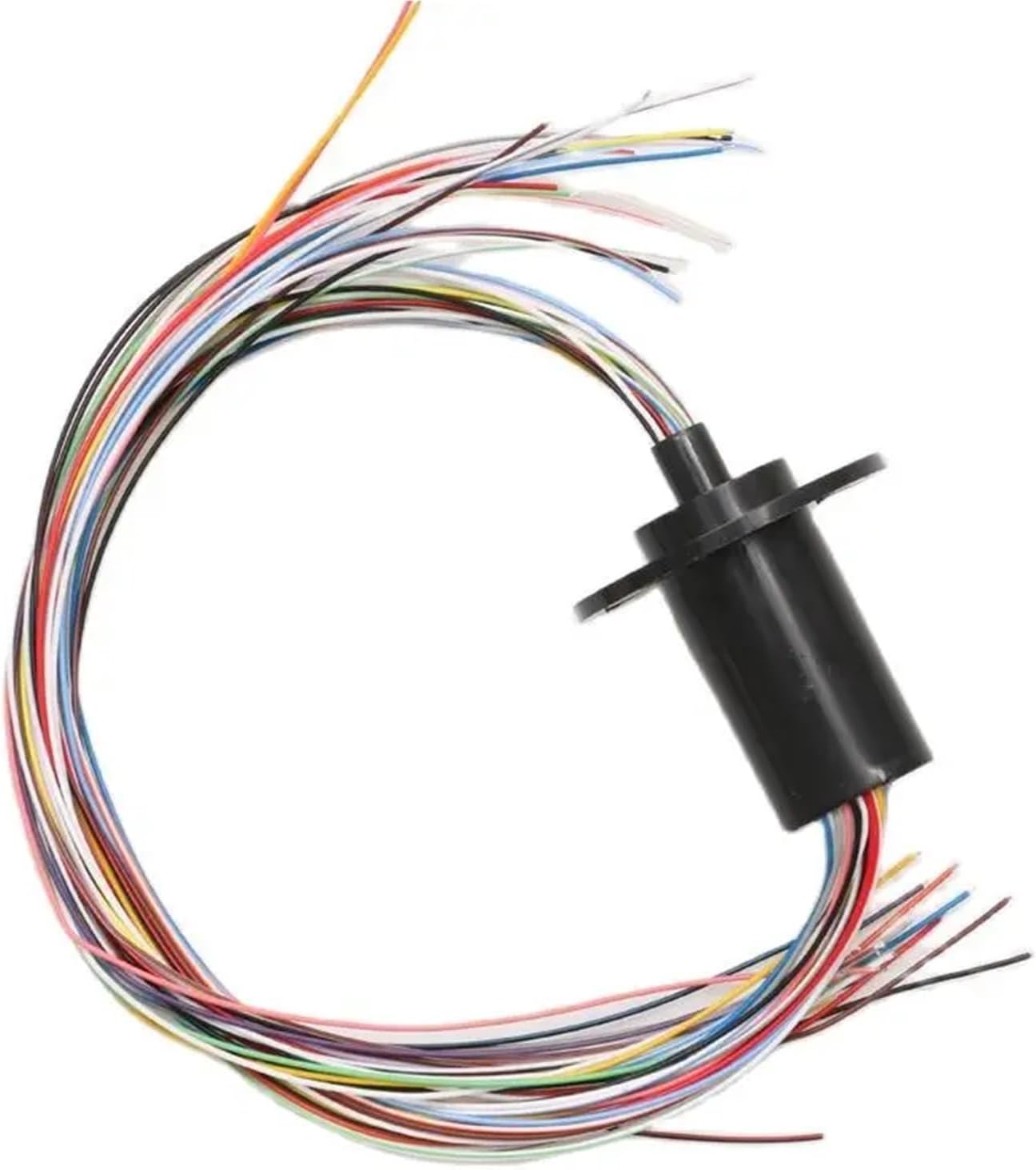

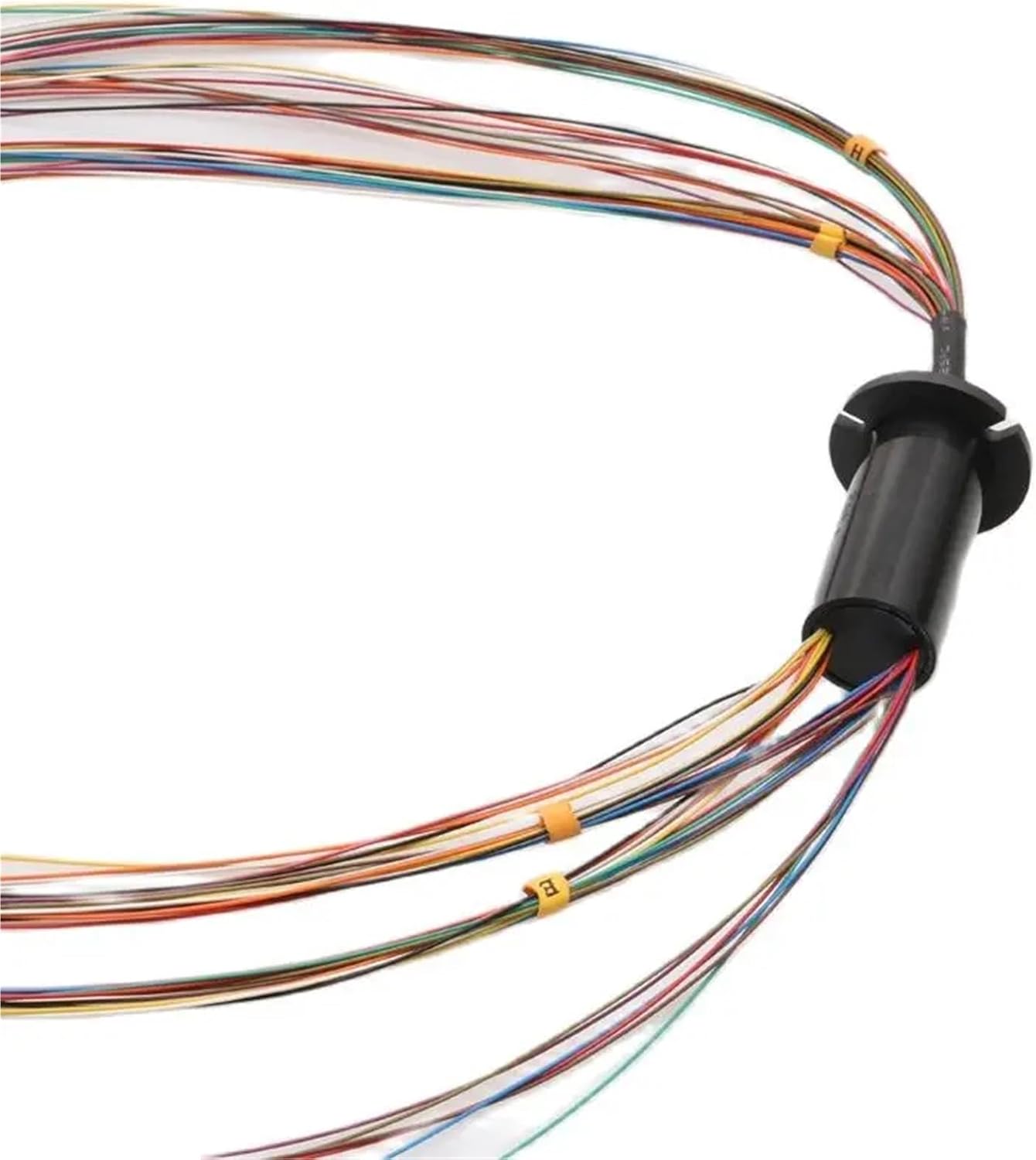

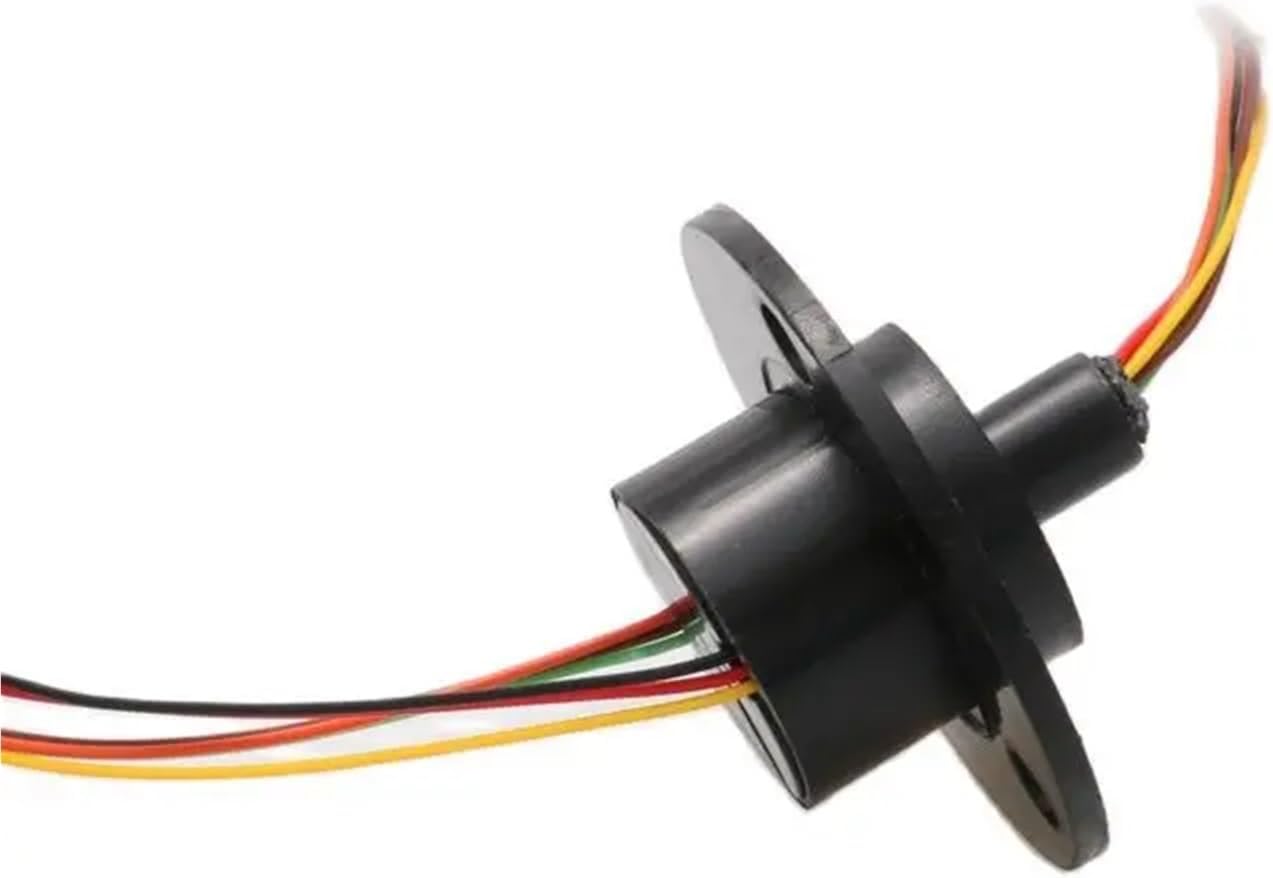

1PC 2/4/6/8/12/18/24/36 Channels Wires Slip Ring 1-2A Slipring 8.5/12.5/15.5/22mm Mini Rotary Conductiv Joint Connectors(Dia 12.5mm 8ch 2A)

Slip Ring1PCs 2/4/6/8/12/18/24/36 Channels Wires Slip Ring 1-2A Slipring 8.5/12.5/15.5/22mm Mini Rotary ConductiveJoint ConnectorsSpecifications:- Rotation Speed: max. 250rpm- Channels: 2-36 channel- Rated Voltage: 220VAC/DC- Rated Current: 1A,1.5A,2A,10A,15A/channel- Working Temp.: -20~+60- Contact Material: gold/gold- Wire Specification: AWG32, AWG30, AWG28, AWG16- Wire Length: standard 200mm- Pressure Strength: >(=)500V/50Hz- Insulation Resistance: 500M Ohm/500VDC- Dynamic resistance fluctuation value: minimum 10m Ohm- Shell Material: engineering plastics- Working Life: >(=)5 million rpm(related to working environment and speed)Package includes:1 x slip ringSlip Ring OverviewSlip ring is an electromechanical component that can transmit energy and data signals from a fixed device to a rotating device. It is also called a conductive ring, brush, slip ring, rotating electrical joint or electrical rotary switch. It is a precise familiarity device that realizes the image, data signal and power transmission of two relative rotating mechanisms. It is used in electromechanical systems that require unrestricted continuous rotation of current and data signals. It can improve mechanical performance, simplify system design, and avoid possible damage caused by wire rotation.The slip ring can be installed in the center of rotation of the equipment and consists of rotating (rotor) and stationary (stator).Typical applicationAutomation equipmentWind power generationConsumer ElectronicsPTZ Packaging MachineRevolving DoorModel airplaneAmusement equipmentLED advertising lightHigh-speedballWinding machine equipmentRobotic armSurveillance securityRotating table Exhibition / display equipmentRobots Electrical test equipment f==========Hign-concerned Chemical : NoneIs Electric : No BatteryQuantity : 1 pcsWheelbase : ScrewsIs it battery/power supply : NIs it charger/adapter : NIs Batteries Included : NoSize : 2/4/6/8/12/18/24/36 ChannelsTechnical parameters : value 2Model Number : for robotFor Vehicle Type : AirplanesTool Supplies : Assembled classFour-wheel Drive Attributes : Slip RingRemote Control Peripherals/Devices : Rotary JointUpgrade Parts/Accessories : SlipringRC Parts & Accs : Slip RingMaterial : otherUse : Vehicles & Remote Control Toys
